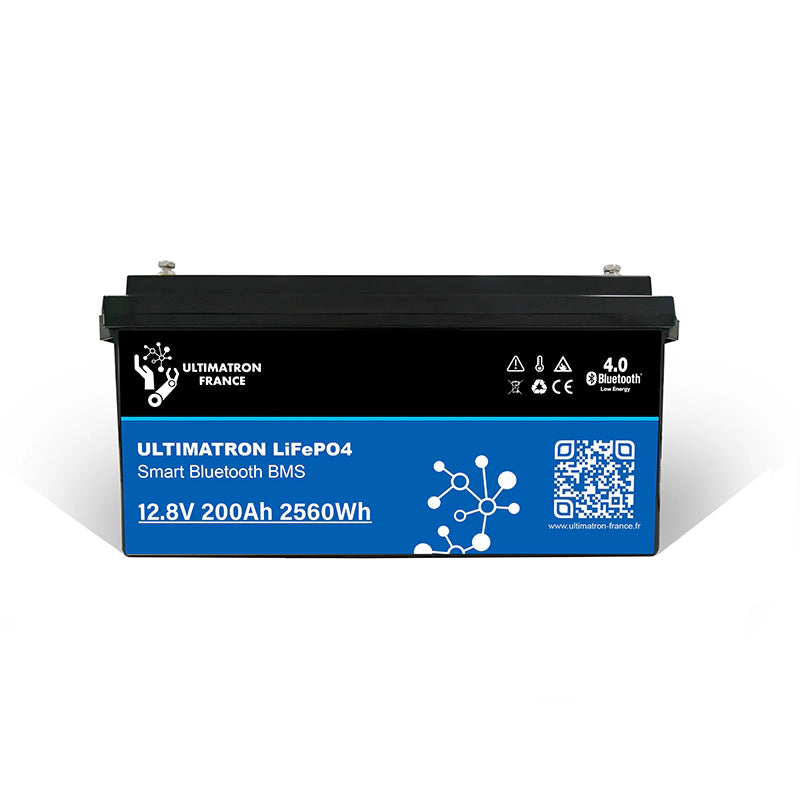

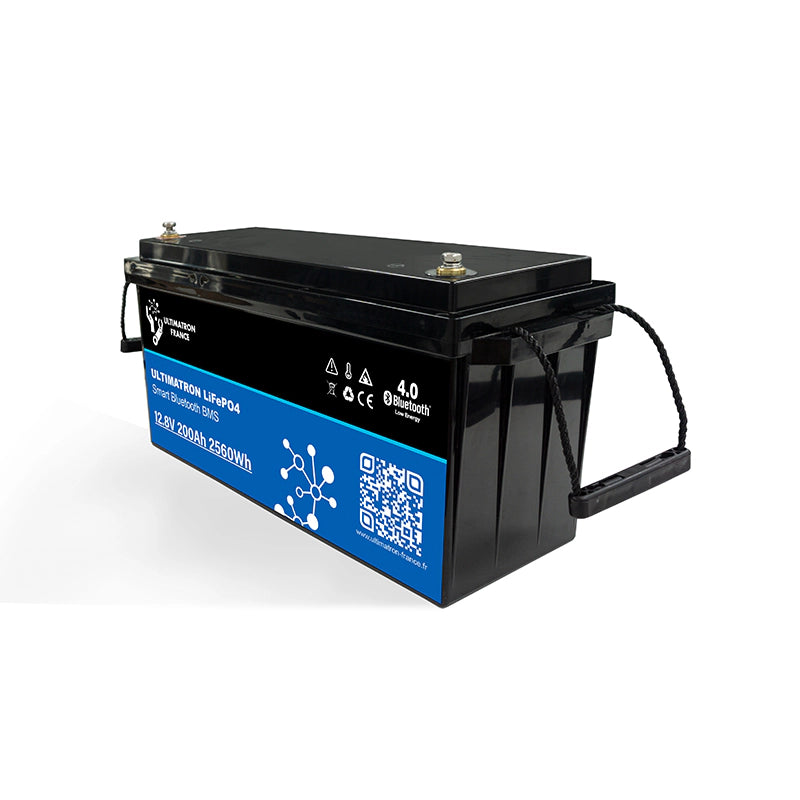

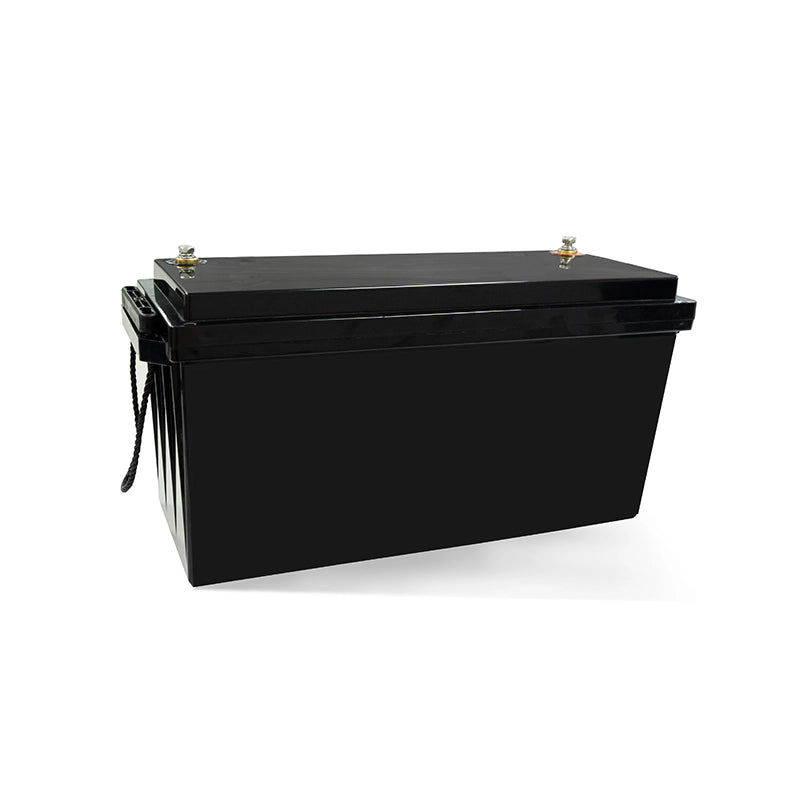

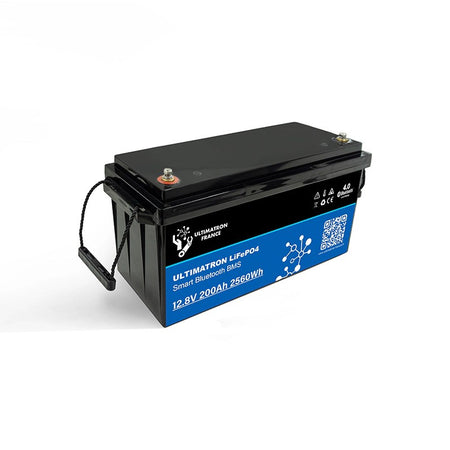

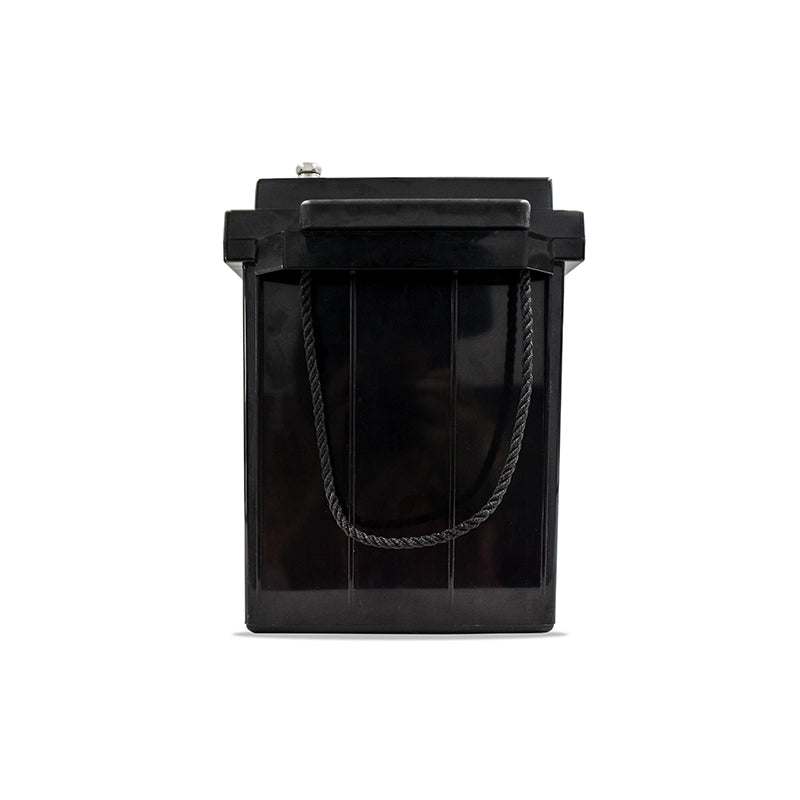

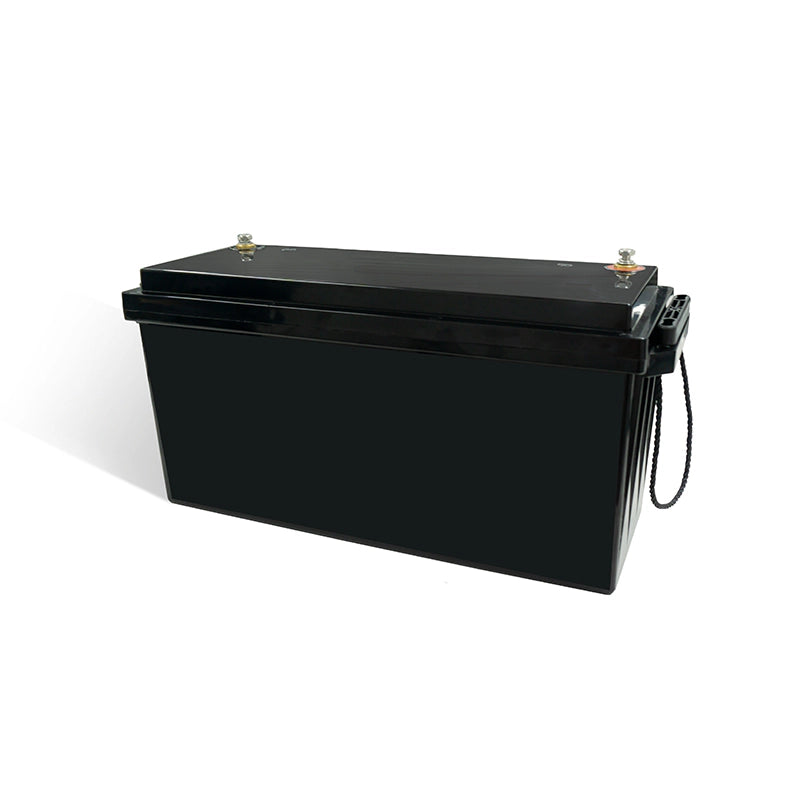

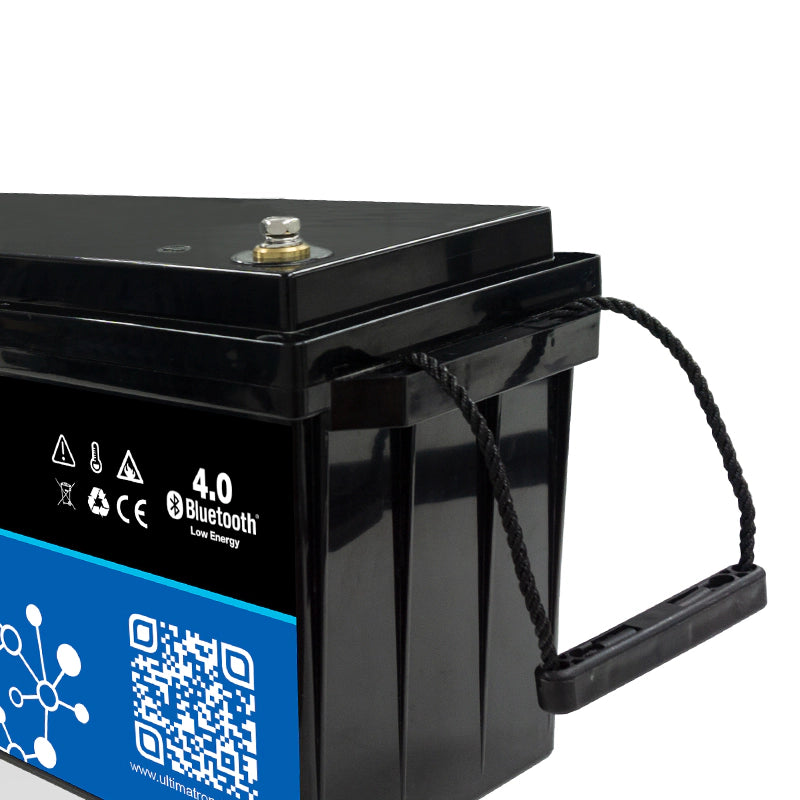

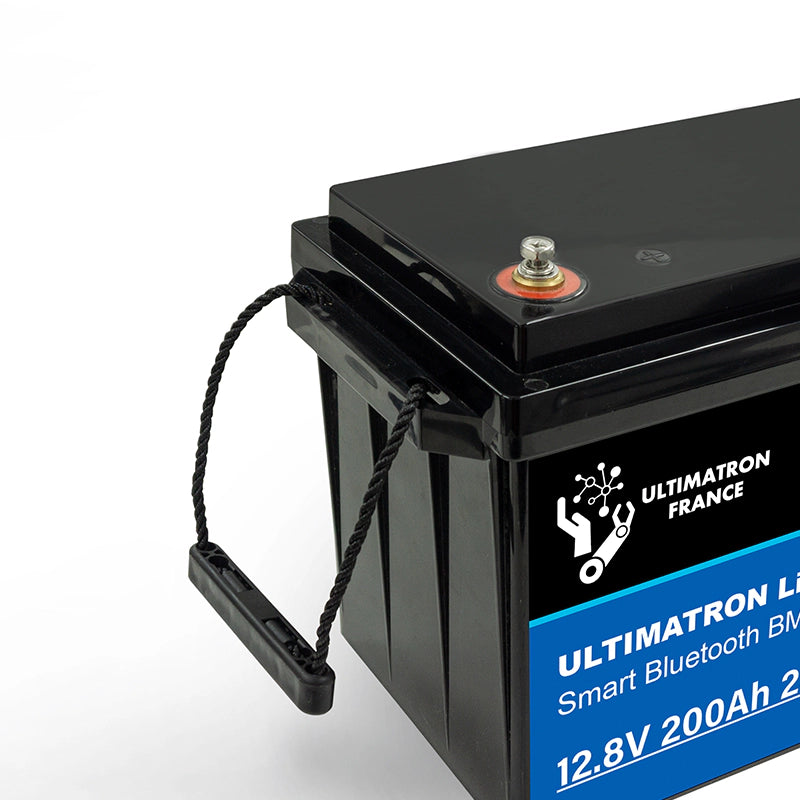

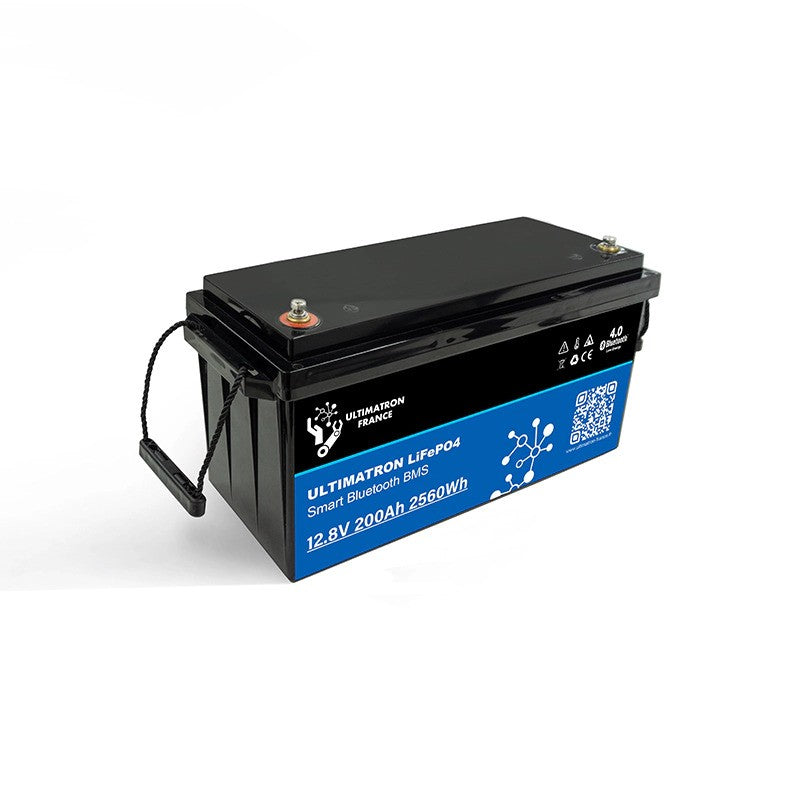

UBL-12V-200Ah-PRO LiFePO4 supply battery 2nd generation

SKU: 1000627
In stock
Available immediately and will arrive in 1-2 days.
High-performance 12.8V battery with 200Ah (2560 Wh) capacity.
A reliable branded product from Ultimatron France - with a 5-year guarantee.
CHF 1,229.90 inkl. MwSt.
Your payment with us is secure and protected by the latest PCI DSS standards. You can shop and pay with us worry-free using the following payment methods:
UBL-12V-200Ah-PRO LiFePO4 supply battery 2nd generation

The new Ultimatron PRO series is here! Smaller housing and less weight with the same performance (same size as UBL-12V-150Ah).

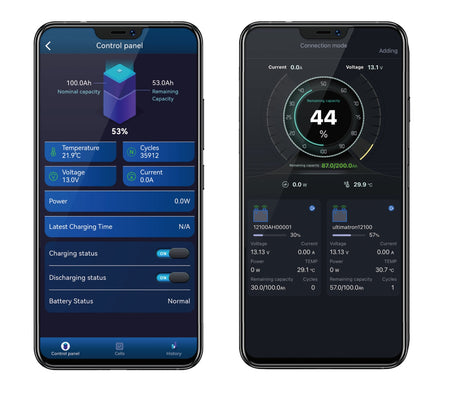

ULTIMATRON 's deep-cycle batteries consist of Class A lithium cells and impress with their high performance , which remains stable even under heavy loads . The integrated Battery Management System (BMS) provides comprehensive cell protection by continuously balancing the cells and constantly monitoring both performance and temperature. The battery can be conveniently connected to a smartphone or tablet via Bluetooth 4.0 , allowing you to keep track of everything in the app. ULTIMATRON offers deep-cycle batteries in various designs and series , capacities, and operating voltages: UBL series , ULM series (under-seat) , and ULS series . Some models are available with or without heating (integrated heating mat) , which, as an additional option, allows the battery to be used even in sub-zero temperatures by maintaining its operating temperature.

  • Pro Series: More power in a smaller case - Small size and low weight
  • Extremely powerful
  • Class A Presmatic battery cell
  • High stability even under extreme loads
  • Deep, constant discharge and charge efficiency
  • No memory effect , no complete charge and discharge cycles required.
  • Integrated Battery Management System (BMS)

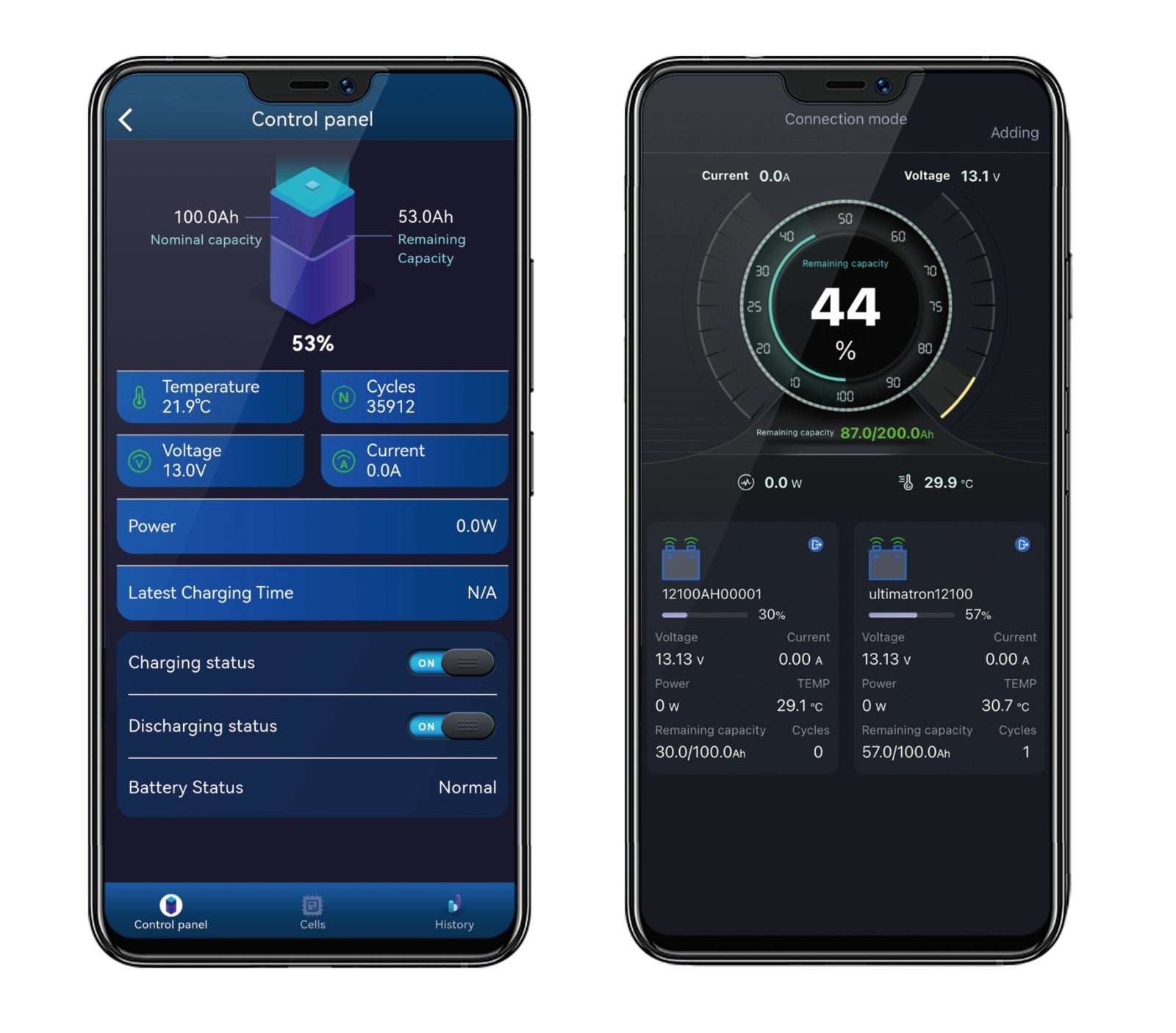

  • Monitoring via Bluetooth 4.0 on smartphone or app
  • 5-year manufacturer's warranty
  • Number of cycles: >6000@80% DoD
  • Equalizing voltage: >12.8V
  • Bluetooth: 4.0 with smartphone
  • Torque clamps: 80 ~ 100 in-lbs (9 ~ 11 Nm)
  • Energy: 2560 Wh
  • Discharge cut-off voltage: 10V (2000ms)
  • Discharge temperature: -20~75
  • Weight: 19.05 kg
  • International Protection Code: IP65
  • Capacity at 20 A: 600 minutes
  • Short-circuit protection: 1000
  • Recommended charging voltage: 14.6 V
  • Recommended charging current: 60A
  • Charging temperature: 0 ~ 50°C
  • Storage temperature: -5 ~ 35°C
  • Load disconnect voltage: 14.6 V (2000 ms)
  • Dimensions (L x W x H): 502 x 186 x 243mm
  • Material box: Abs
  • Maximum continuous discharge current: 200A
  • Maximum charging current: 100A
  • Nominal capacity: 200 Ah
  • Nominal voltage: 12.8 V
  • Self-discharge: <3% / month
  • Peak discharge cutoff current: 450A (200~500ms)
  • Connecting screw: M8
  • Shipping classification: UN 3480, CLASS 9
  • Resistance: ≤15 mΩ at 50% SOC
  • Restart voltage: >11.2V
  • Restart voltage: 13.8 V
  • Certifications: CE, UN38.3, UL1642 and IEC62133
