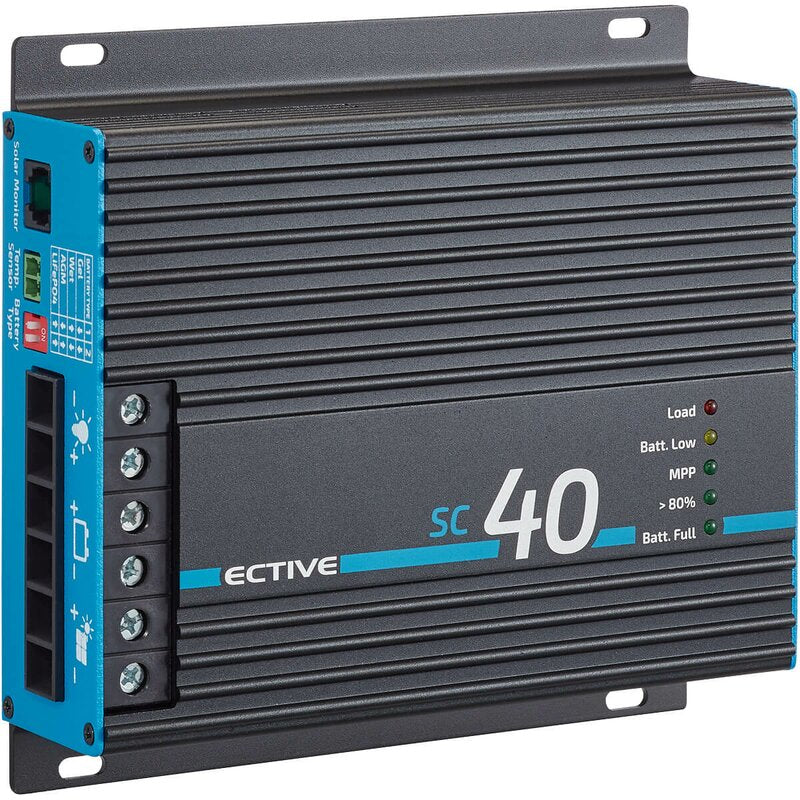

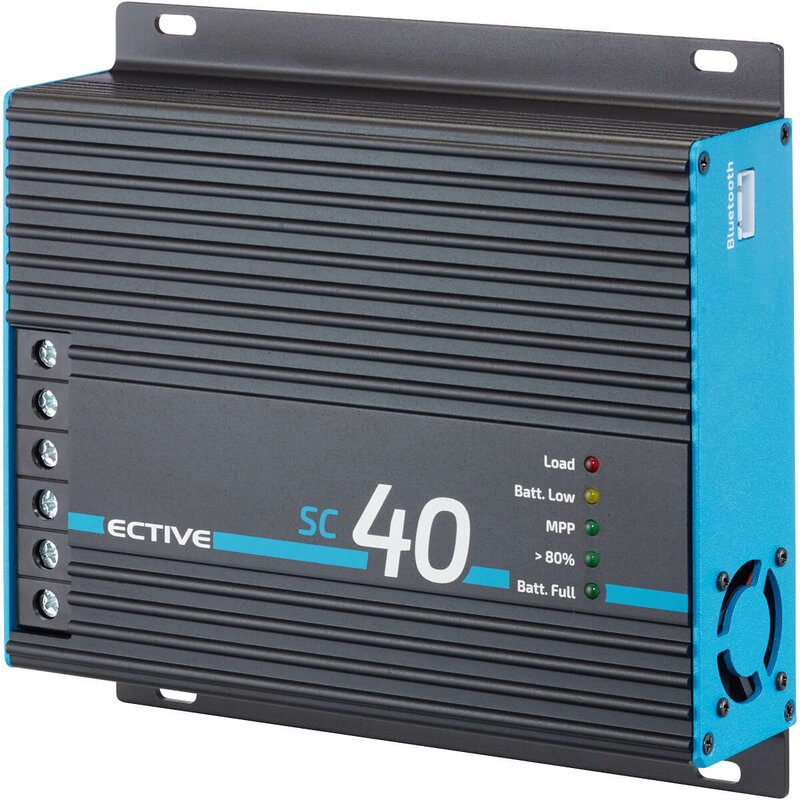

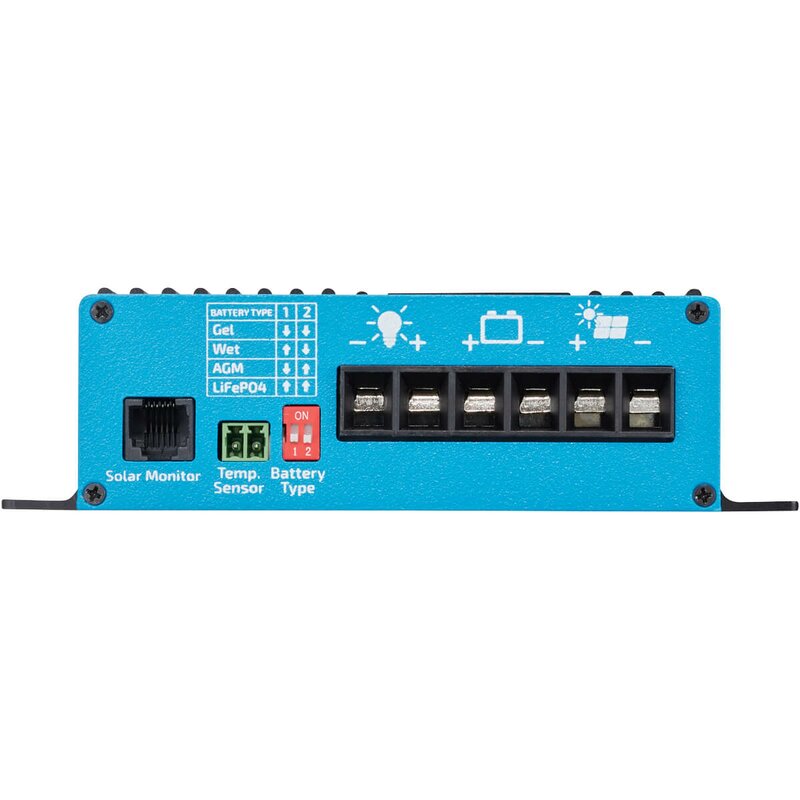

SC 40 MPPT Solar Charge Controller
40A charging current. Compatible with 12V (480Wp) and 24V (960Wp).
With output for 12V/724V direct consumers.
Suitable for all battery technologies (Gel, AGM, Wet, Lithium)

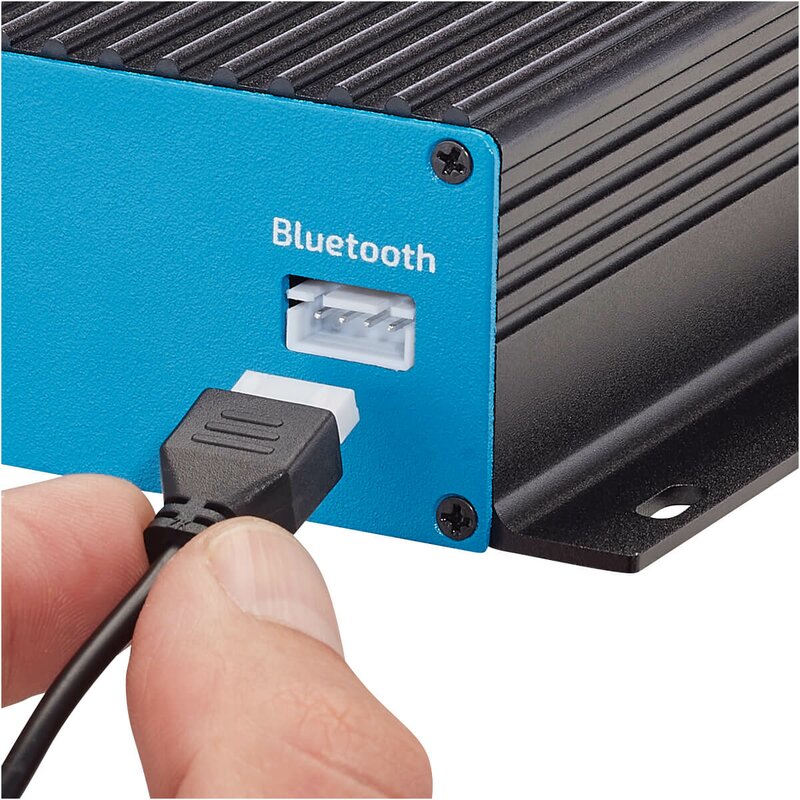

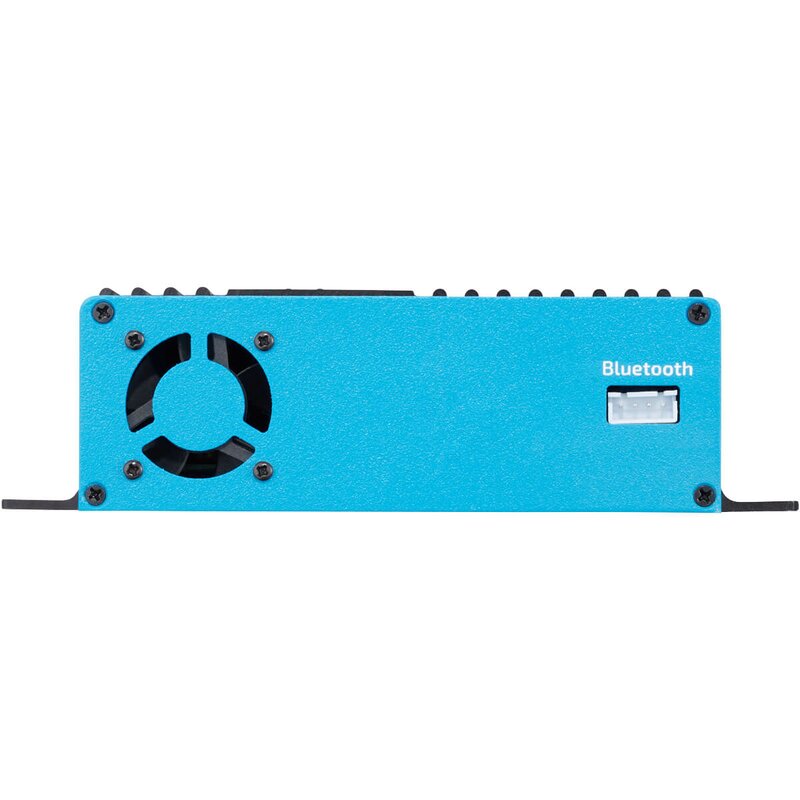

Expandable with Bluetooth, monitor & temperature sensor.
Regular price
CHF 169.90
inkl. MwSt.
Your payment with us is secure and protected by the latest PCI DSS standards. You can shop and pay with us worry-free using the following payment methods:
Couldn't load pickup availability
The solar charge controller is the link between solar panels and the leisure battery . ECTIVE charge controllers with Maximum Power Point Tracking (MPPT) adjust the input voltage to ensure the battery is charged as quickly and efficiently as possible. All ECTIVE MPPT charge controllers are also equipped with comprehensive protection functions , ensuring your battery is charged gently and safely , which also extends its lifespan . ECTIVE MPPT charge controllers support all common battery technologies – wet , gel , AGM , and lithium . We offer a total of three different MPPT charge controller series.
The SC series, with its additional DC connection, supports higher solar panel power, battery nominal voltage , and charging current than the DSC series. Both series can be expanded with a Bluetooth module.
The S C 20 Silent charge controller is compact, flat, lightweight and quiet - making it ideal for use with allportable solar modules .
Protective functions:
The SC series, with its additional DC connection, supports higher solar panel power, battery nominal voltage , and charging current than the DSC series. Both series can be expanded with a Bluetooth module.
The S C 20 Silent charge controller is compact, flat, lightweight and quiet - making it ideal for use with allportable solar modules .
Protective functions:
- Overload protection: The charge controller protects against excessively high input and output loads.
- Battery overcharge protection: Damage to your battery due to overcharging is reliably prevented.
- Overheating protection: Permanent temperature monitoring ensures that the charge controller and battery do not exceed their operating temperature.
- Reverse polarity protection: The charge controller only works if you have connected the positive and negative cables correctly. Battery and charger are therefore always optimally protected.
- Protection against battery back-discharge: If the solar power is too low, the charge controller prevents the current from flowing back out of the battery and thus protects it from discharge .
- 12V consumer connection: Yes

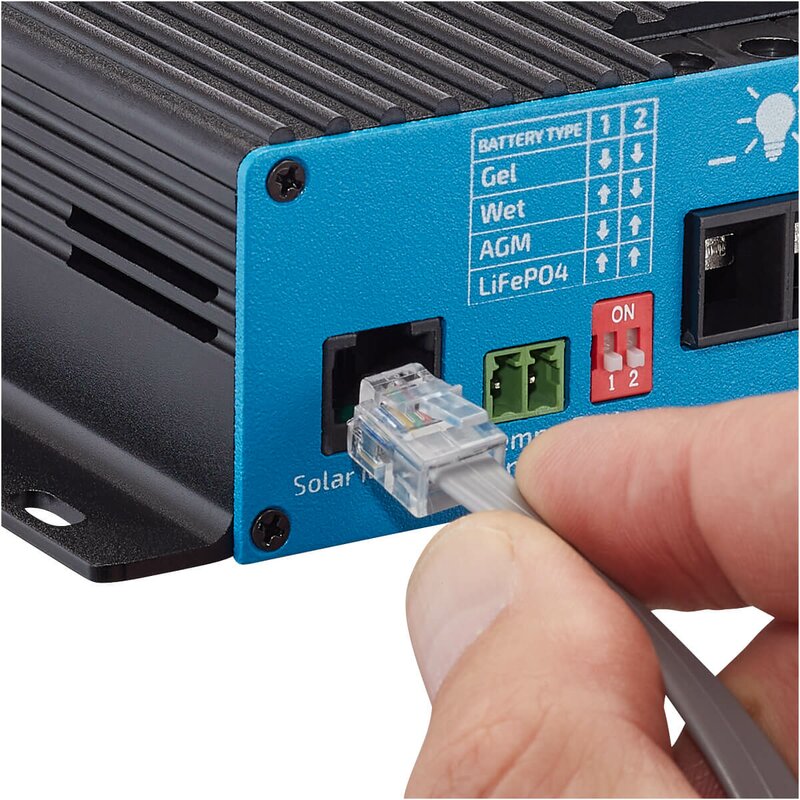

- LCD solar computer connection: Yes

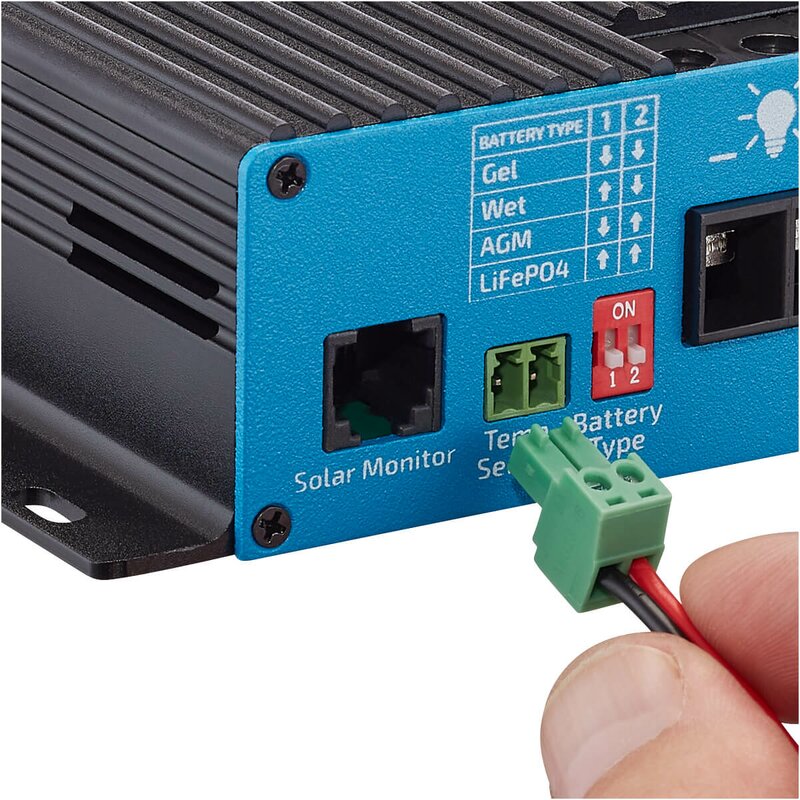

- Temperature sensor connection: Yes
- Number of charging outputs: 1
- Number of charging outputs: 1
- App display (Bluetooth function): No
- Compensation for voltage losses on the charging cables: Yes
- Battery nominal voltage (DC): 12V
- Self-consumption: 4mA
- For battery type: Lithium (LiFePO4), AGM (VRLA), Wet (Liquid), Gel (VRLA)
- Device fuse (FKS): 60A
- Weight: 0.77kg
- Manufacturer's warranty: 2 years
- Charging mode: MPPT
- Charging current Batt. I / II max.: 40A
- Charging current Batt. I/II max.: 40A

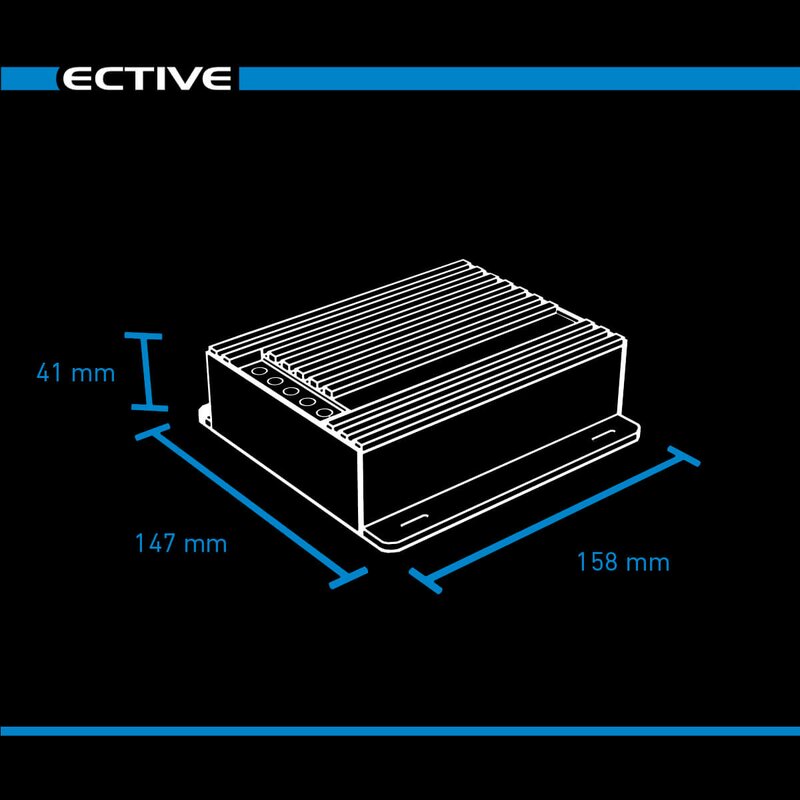

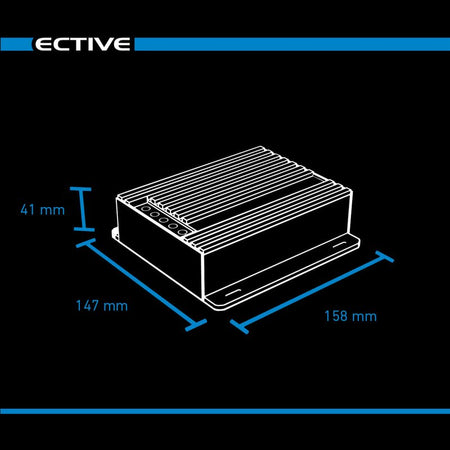

- Dimensions (L x W x H): 41 x 147 x 158mm
- Backflow prevention (night operation): Yes
- Protection against: overload, overheating and reverse polarity.
- Maximum solar module power: 960/480Wp
- Maximum solar module voltage: 50V
- Maximum solar panel current: 20A
- Overload protection: Yes
