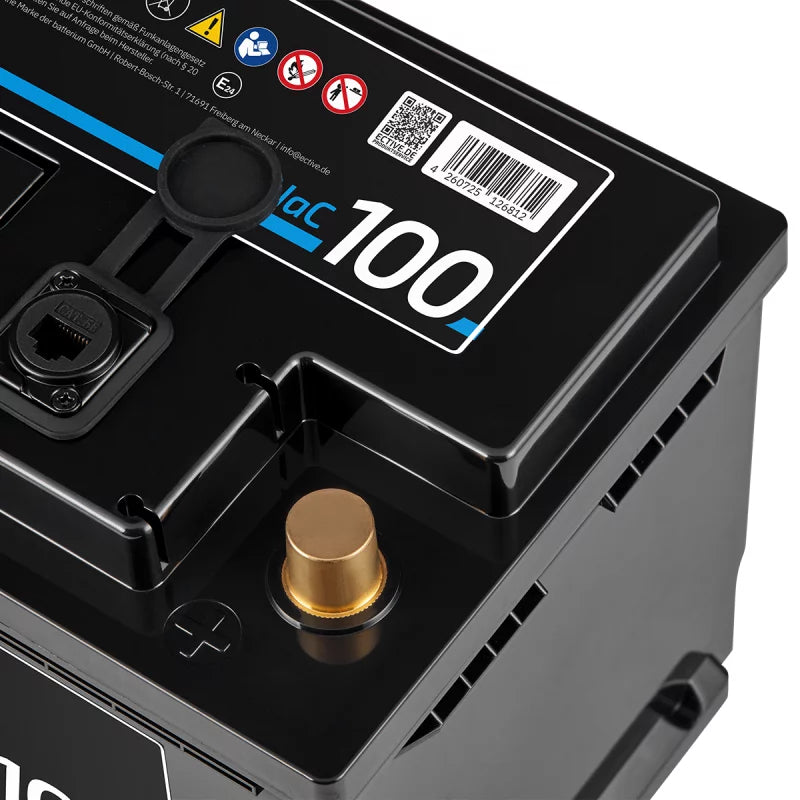

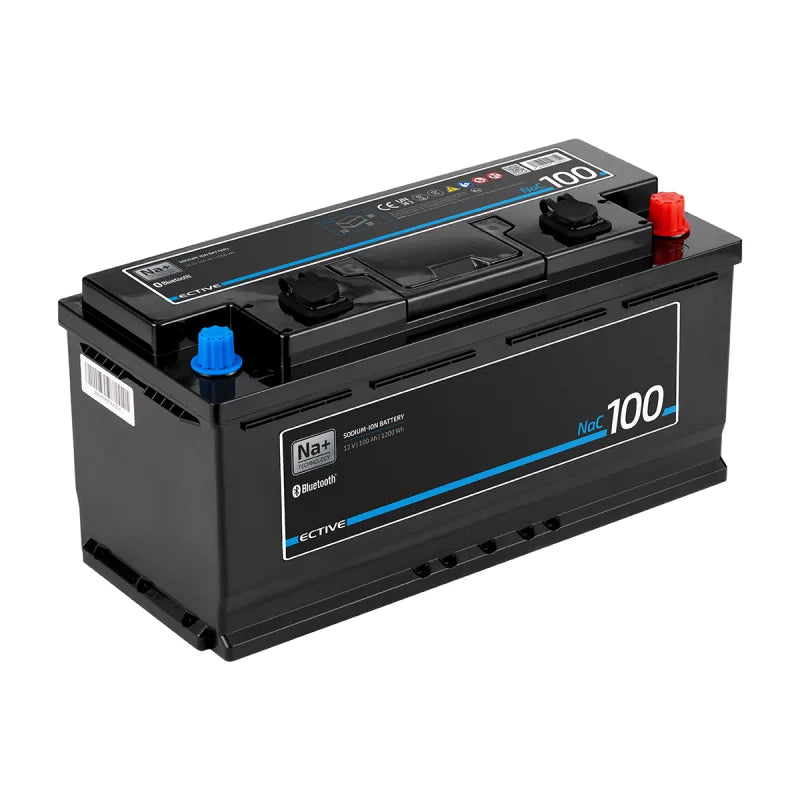

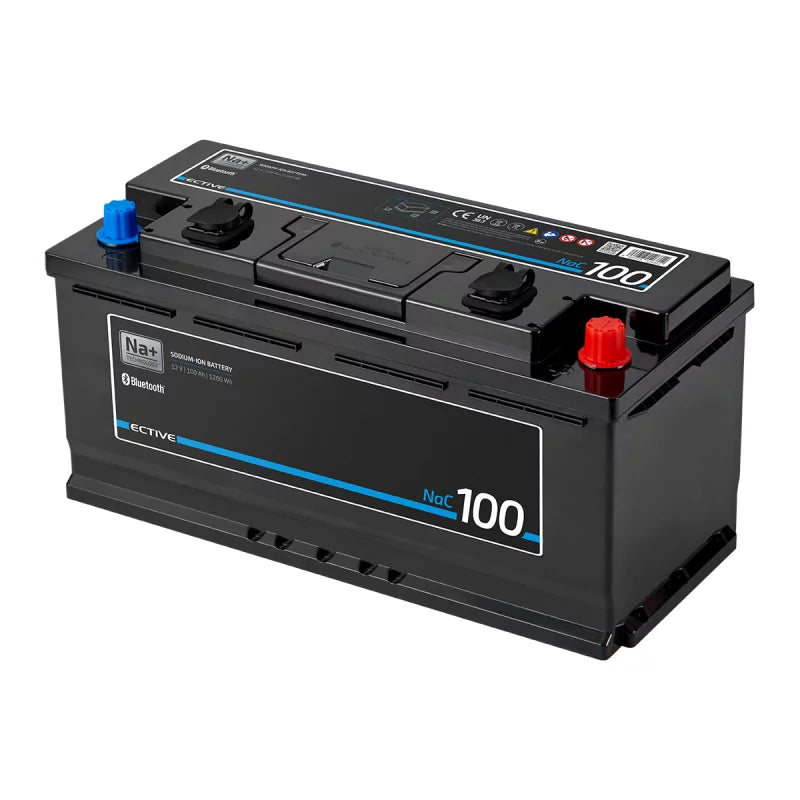

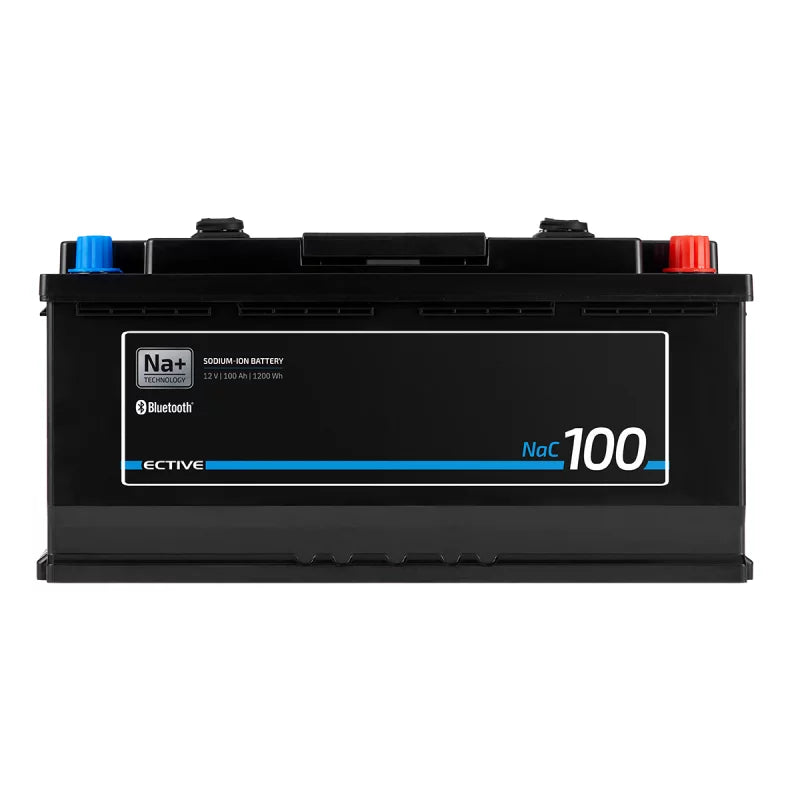

NaC 100 BT 12 V sodium supply battery 100 Ah
Couldn't load pickup availability
Whether in a motorhome, caravan, boat, tiny house or allotment garden: The NaC series stands for high-performance and resource-saving energy supply – even at icy temperatures down to -20 °C.
The NaC series is an innovative battery solution based on sodium-ion technology – designed for sustainable and versatile power supply. With up to 10,000 charge cycles, a 3C discharge current, and extremely low self-discharge, it is ideal for long-term use, even under the harshest conditions. Bluetooth 7.0 and the new connECTIVE app allow you to monitor all important parameters at any time, while the integrated CAN bus interface enables easy connection to the vehicle's electronics.
Power on the go- Up to 200A continuous discharge current – powers even power-intensive devices such as induction cooktops or air conditioners.
- 100 Ah capacity (1200 Wh battery capacity) at 12 V – reliable for motorhomes, caravans, boats & more.
- Up to 10,000 charge/discharge cycles – durable & future-proof
- Extremely low self-discharge – ideal for long periods of inactivity
- Sodium ion technology – resource-saving & environmentally friendly
- Safe against overcharging, deep discharging, short circuits, high currents and temperature fluctuations – reliable in every situation
- 100% usable capacity – fast charging & long lifespan
- Lighter than lead – virtually maintenance-free
- CoreTech BMS – Protection against high currents & passive cell balancing
- Bluetooth 7.0 – Control & Monitoring via the connECTIVE App
- CAN bus connection – seamless integration into vehicle electronics
- Integrated on/off switch – minimal self-discharge during periods of inactivity
- Rechargeable down to -10 °C – fully functional down to -20 °C
- No heating plates needed – saves energy consumption in winter
- ECE R10 certification – safe use in vehicle operation
- 3-year manufacturer's warranty – for maximum security
- ECE R10 certified – worry-free installation & operation
NaC deep-cycle batteries represent the next step in battery technology – sustainable, innovative, and absolutely reliable. From motorhomes and caravans to boats and tiny houses: with up to 10,000 charging cycles and smart technology, they deliver future-proof energy for every application.
- App display (Bluetooth function): Yes
- Battery technology: Sodium-ion
- Battery Management System (BMS): Yes, integrated
- Recommended charging current: 50 A
- Recommended charging voltage: 15.8 V
- End polarity: SAE
- Discharge time at 25 A: 240 min
- GTIN: 4260725126812
- Manufacturer: ECTIVE
- Manufacturer part number: TN7126
- Capacity (Ah): 100 Ah / 1,200 Wh

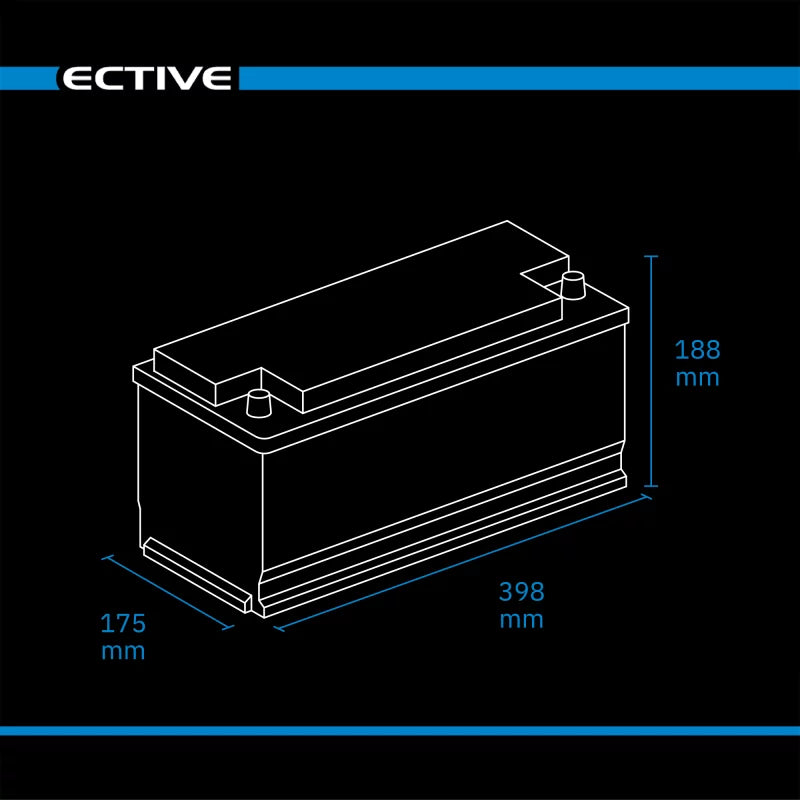

- Dimensions (L x W x H): 398 x 175 x 188 mm
- Max. number of batteries in series: 4
- Maximum constant discharge current: 100 A
- Voltage: 12 V
- Peak discharge current: 1000 A
- Temperature range (discharge): -20 °C to 55 °C
- Temperature range (charge): -10 °C to 45 °C
- Temperature range (storage): -20°C to 45°C
- Certifications: ECE R10, CE, UN38.3
- Cycles at 100% DOD: 2000
- Cycles at 30% DOD: 10000
- Cycles at 50% DOD: 6000
- Cycles at 80% DOD: 4000
