LC 185s LT | 185Ah supply battery with heater

SKU: 1000827
In stock
Available immediately and will arrive in 1-2 days.
Offers up to 170% more usable capacity than conventional batteries in a 100Ah casing.
ECTIVE CoreTech BMS with 200 A continuous discharge current.
The on/off switch protects against prolonged periods of inactivity.
7-year manufacturer's warranty!
CHF 1,399.90 inkl. MwSt.
Your payment with us is secure and protected by the latest PCI DSS standards. You can shop and pay with us worry-free using the following payment methods:

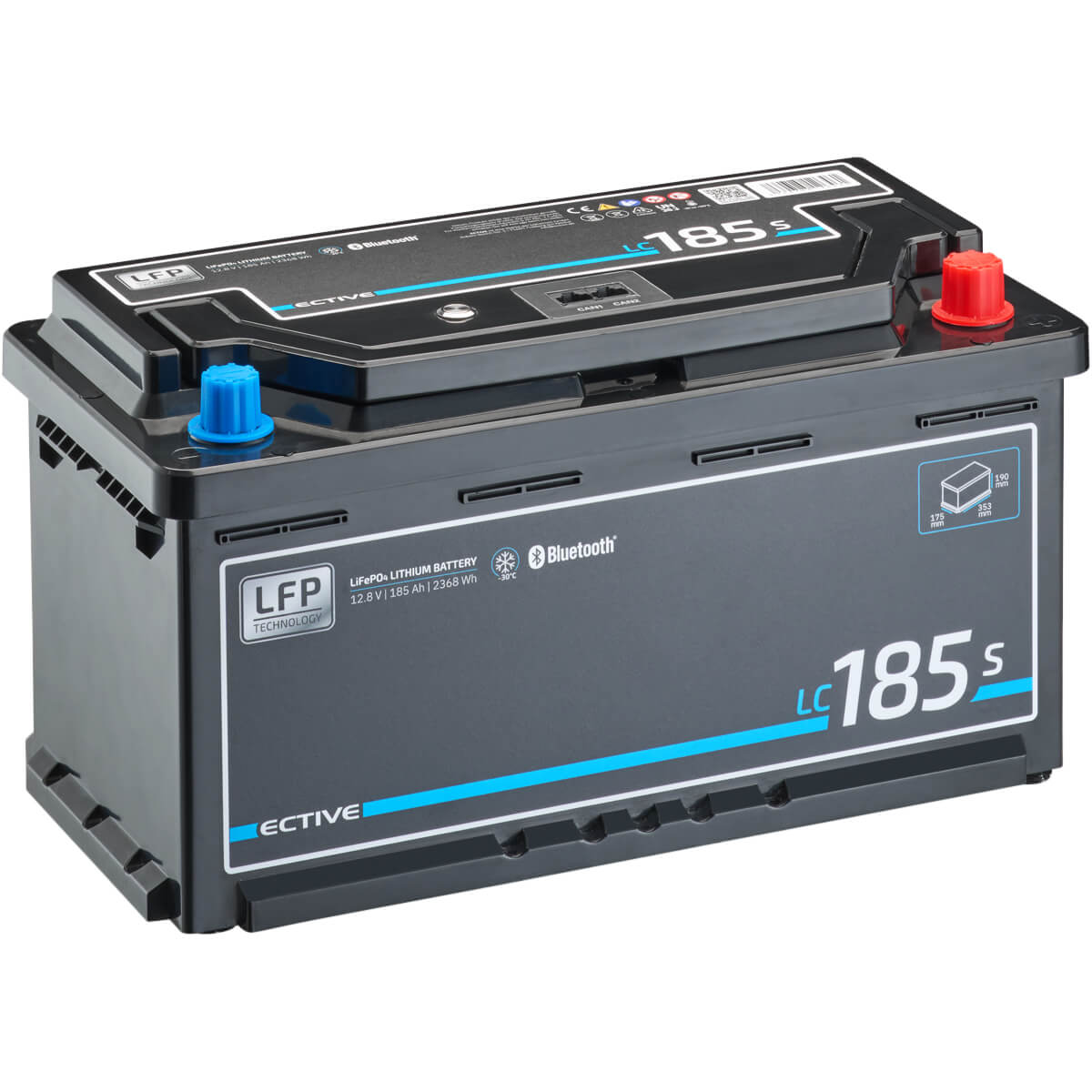

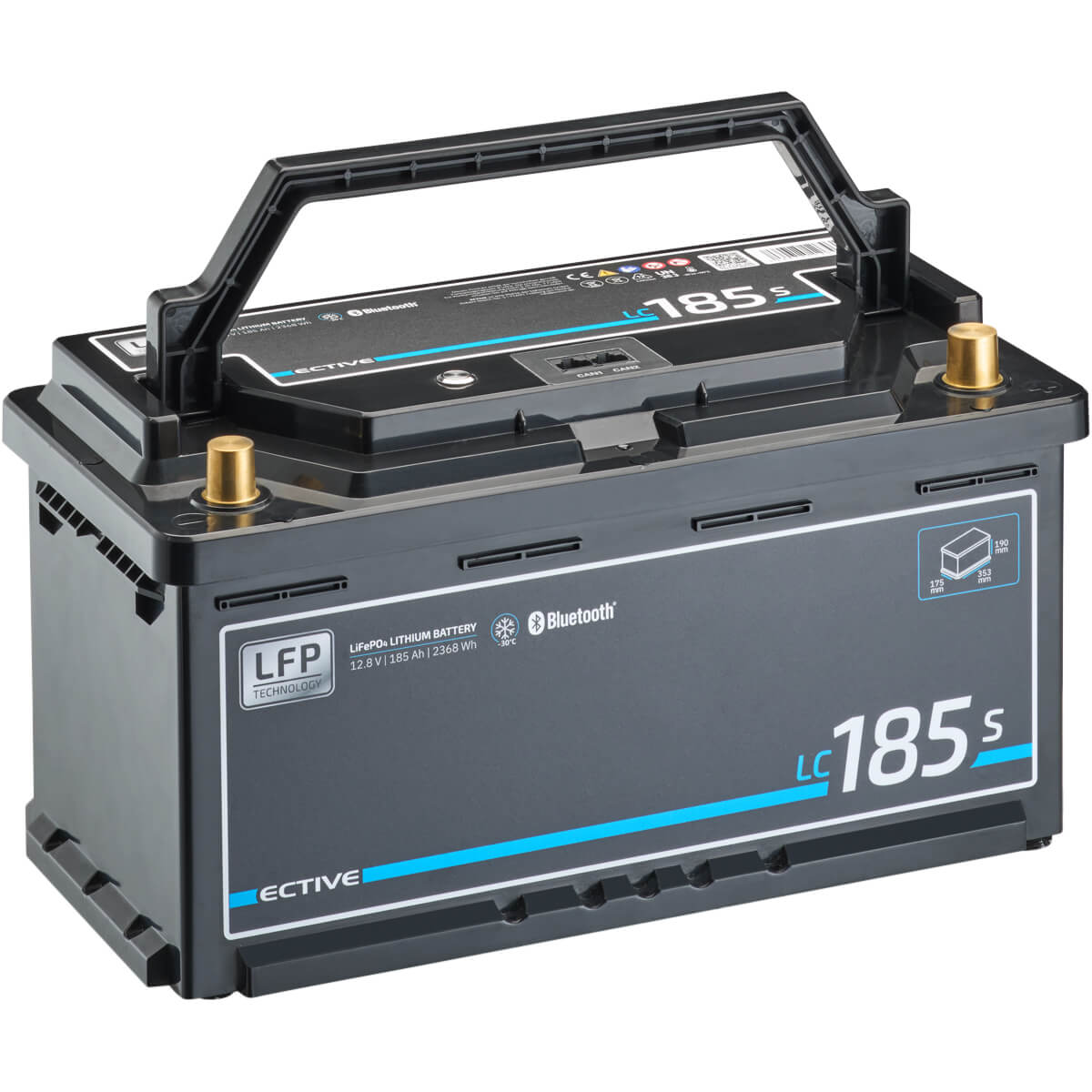

LC 185s LT | 185Ah supply battery with heater

The LC S LT LiFePO4 batteries are designed for anyone who needs maximum power in the smallest of spaces – whether in a motorhome, campervan, or tiny house. With an innovative CoreTech BMS, up to 150 A continuous discharge current, Bluetooth monitoring, and ECE R10 certification, the series offers everything a modern mobile power supply needs.

Thanks to integrated active cell balancing, CAN bus connectivity, and a low-temperature function down to -30°C, the LC S LT series ensures optimal performance even in demanding situations. And because each battery features a screw-on housing, it is particularly easy to maintain and sustainable.

Info: Warning and safety information can be found under 'Downloads' in the user manual.

  • Offers up to 170% more usable capacity than conventional batteries in a 100Ah casing.
  • Delivers up to 200 A continuous discharge current
  • Features 1 Ampere active and passive cell balancing for maximum efficiency and lifespan.
  • Enables Bluetooth monitoring directly via smartphone
  • Can be charged at temperatures as low as -30°C thanks to an integrated heating function.

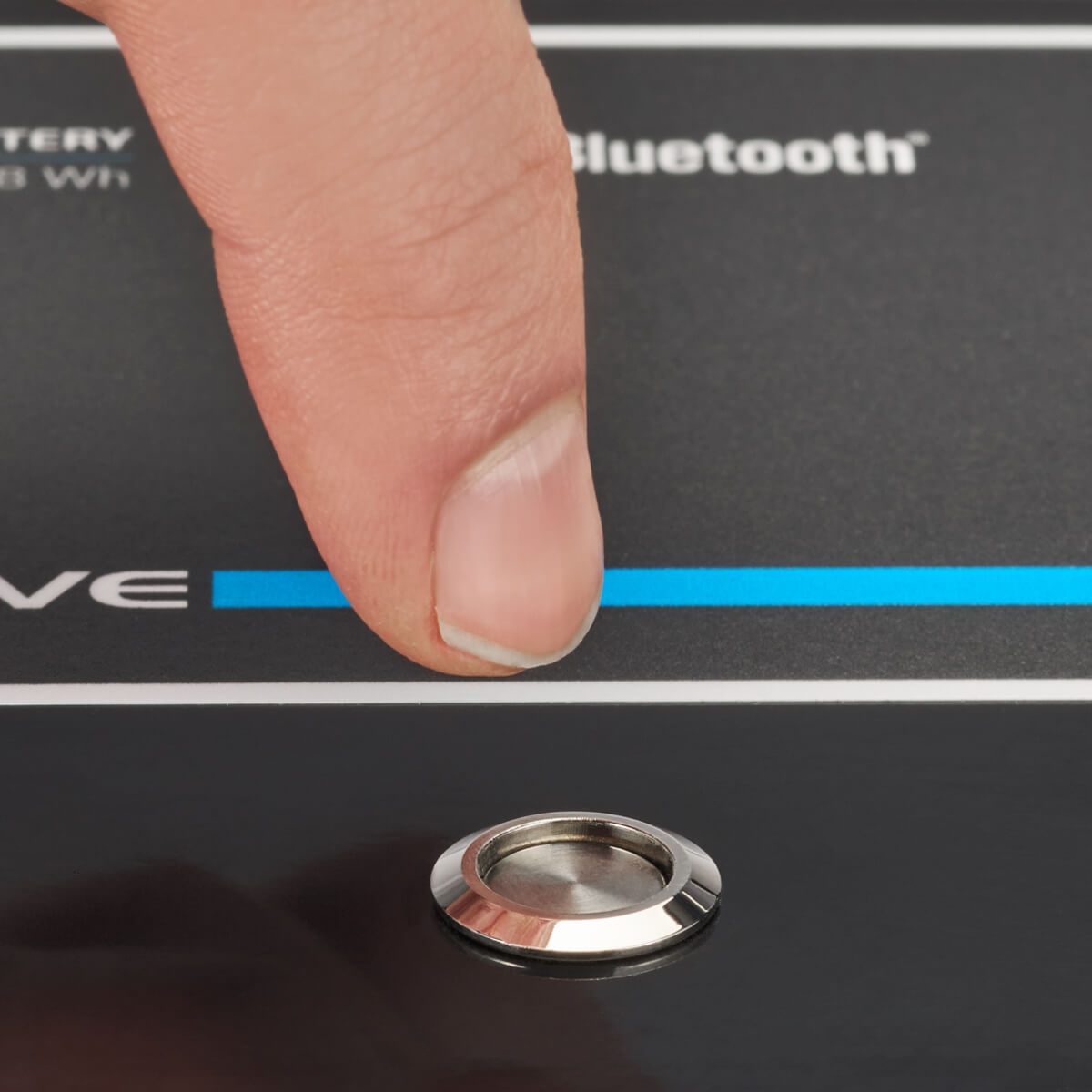

  • It has an on/off switch to minimize self-discharge.

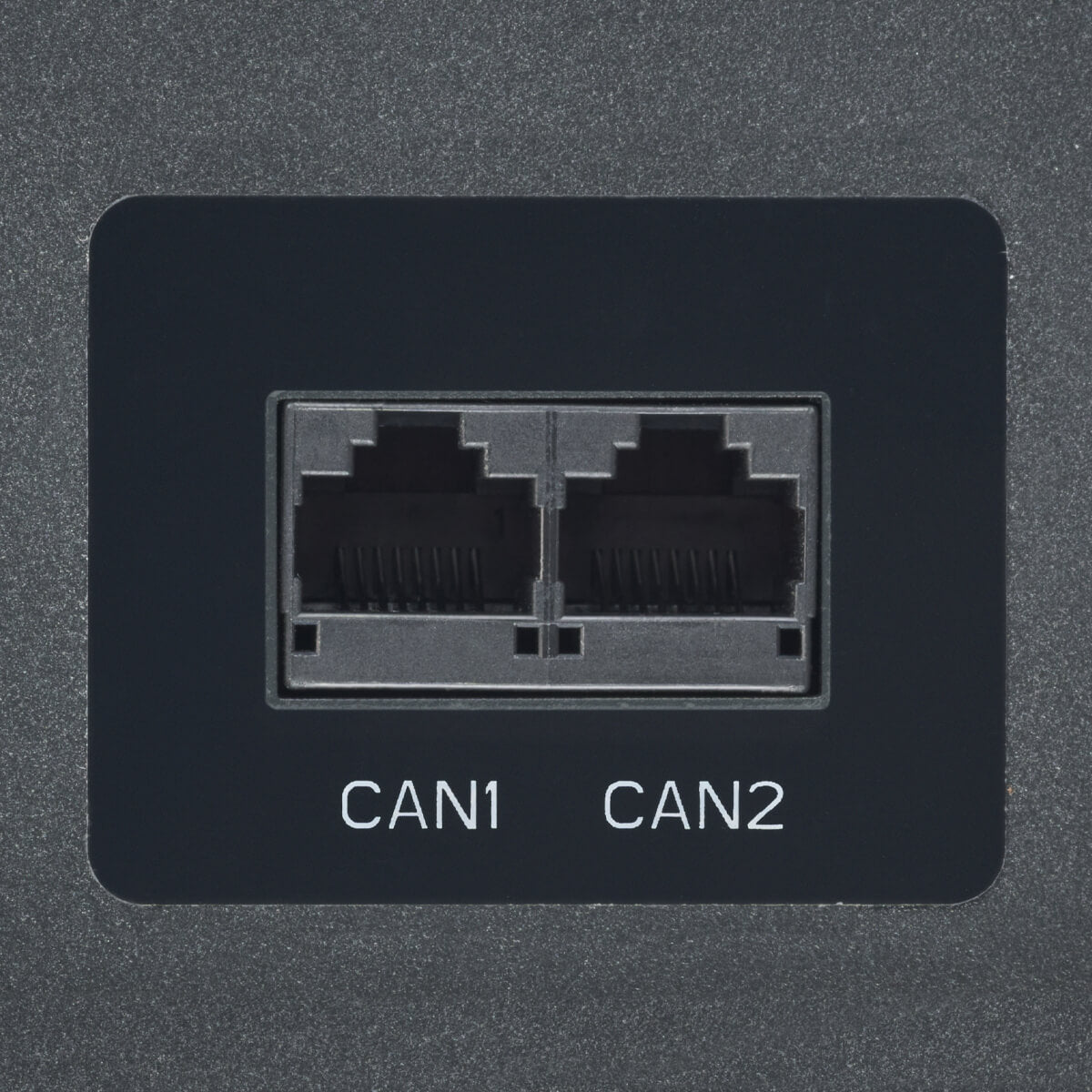

  • It can be easily integrated into existing vehicle electronics via CAN bus.
  • ECE R10 certified for safe cargo during transport
  • ECTIVE CoreTech BMS technology is integrated
  • LiFePO4 technology, 100% usable capacity, fast charging, long lifespan, lighter than lead
  • 7-year warranty
  • App display (Bluetooth function): Yes
  • Battery technology: LiFePO4 (lithium iron phosphate)
  • Battery Management System (BMS): Yes, integrated
  • BMS Max. Temperature: 65 °C
  • Recommended charging current: 92 A

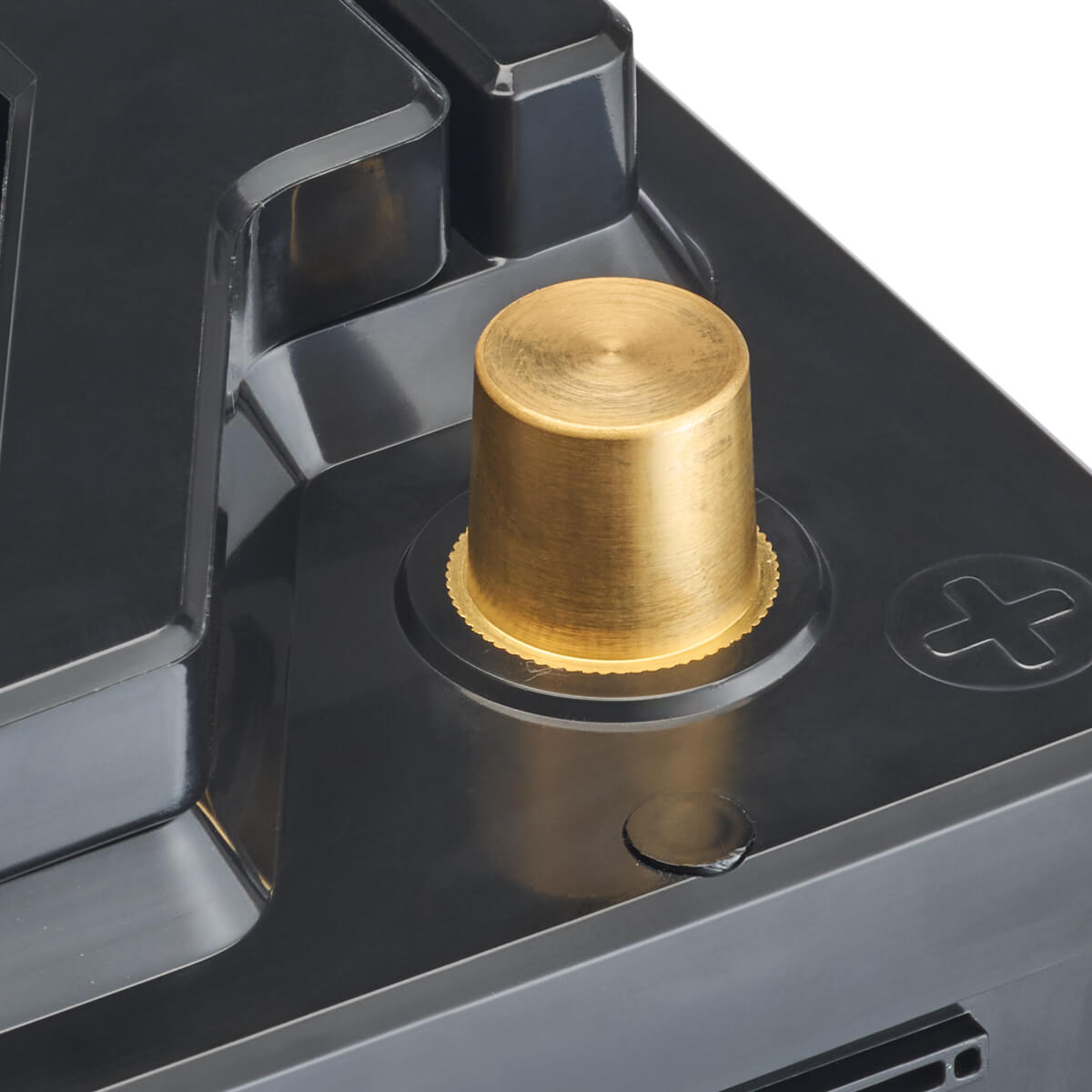

  • End polarity: Round poles
  • Discharge time at 25 A: 444 min
  • Weight: 18.50 kg
  • GTIN: 4260725126461
  • Manufacturer part number: TN6994
  • Capacity (Ah): 185 Ah / 2368 Wh
  • Dimensions (L x W x H): 353 x 175 x 190 mm
  • Max. number of batteries in series: 2
  • Maximum constant discharge current: 200 A
  • Max. charging current: 200 A
  • Nominal voltage: 12.8 V
  • Peak discharge current: 300 A ± 30 A (5.5 s ± 1 s)
  • Temperature range (discharge): -20 °C to 60 °C
  • Temperature range (charge): -30 °C to 55 °C
  • Temperature range (storage): -10 °C to 45 °C
  • Shipping weight: 19.00 kg
  • Certifications: ECE R10, IP 21, CE, UN38.3, UL1973
  • Cycles at 100% DOD: 4000
  • Cycles at 30% DOD: 13500
  • Cycles at 50% DOD: 10000
  • Cycles at 80% DOD: 6800
