BB 60 24V to 12V charging booster 60A

SKU: 1000344
In stock
Available immediately and will arrive in 1-2 days.
60A charging booster - 24V to 12V
Protects the alternator and ensures a correct charging curve for your LiFePo4 battery.
CHF 399.90 inkl. MwSt.
Your payment with us is secure and protected by the latest PCI DSS standards. You can shop and pay with us worry-free using the following payment methods:
BB 60 24V to 12V charging booster 60A

With the high-performance chargers from ECTIVE's Battery Booster and Solar Battery Booster series, you can easily charge your leisure battery while driving . This means you don't have to worry about a shore power connection as soon as you arrive at your campsite and can travel independently for significantly longer.

  • For lead-acid/AGM/gel or lithium batteries
  • No loss of performance
  • Charging process in three optimized steps

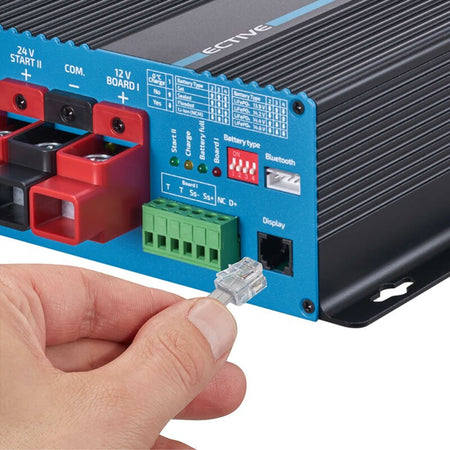

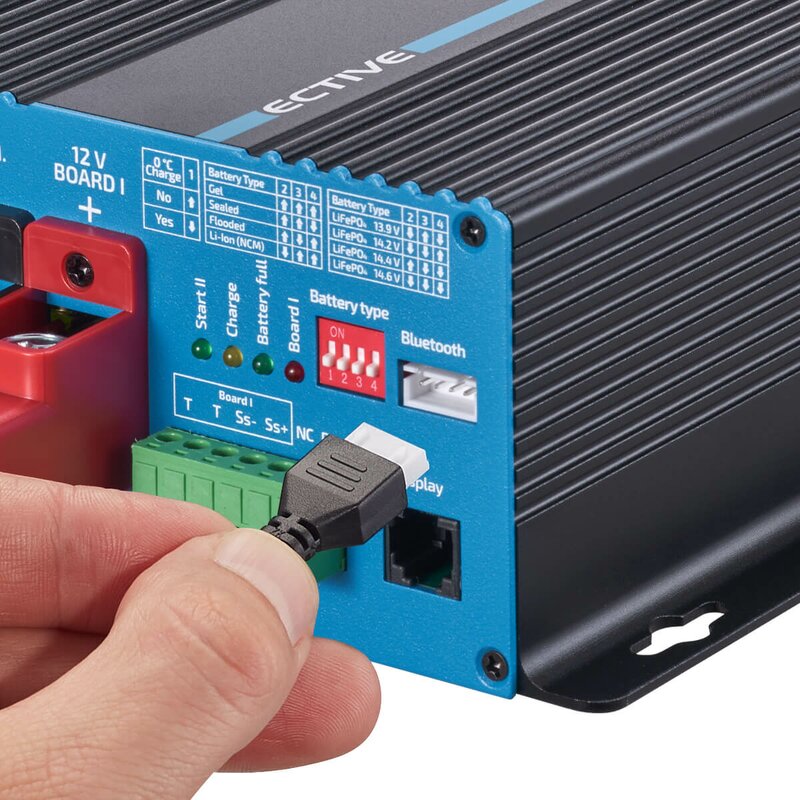

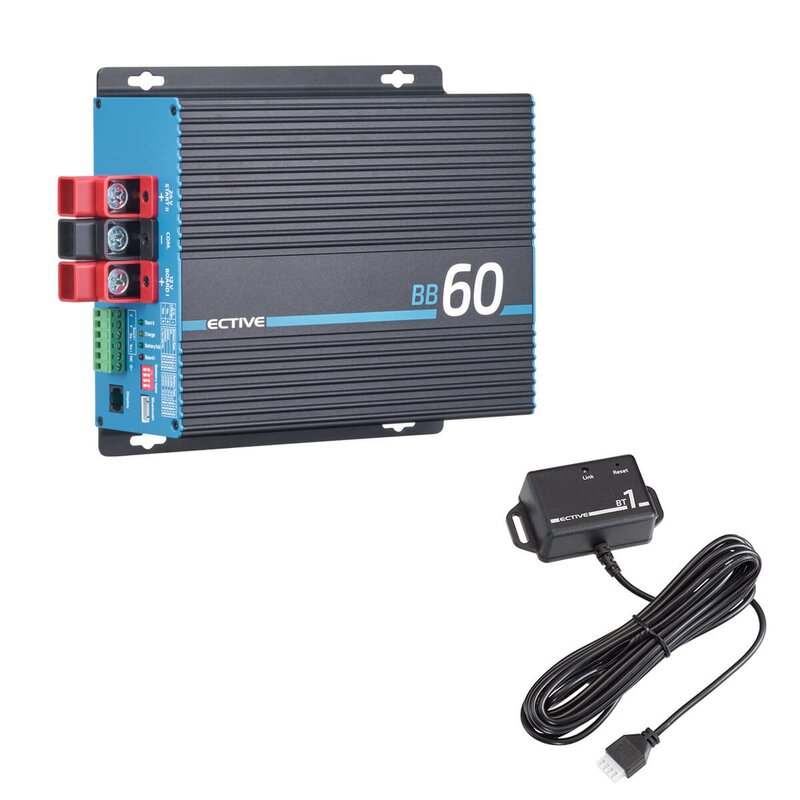

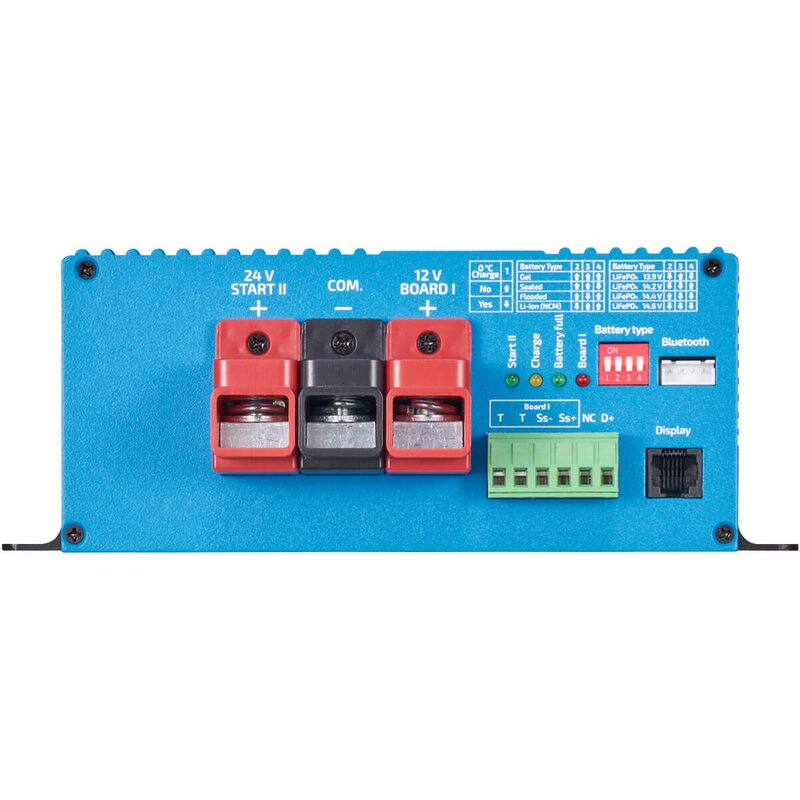

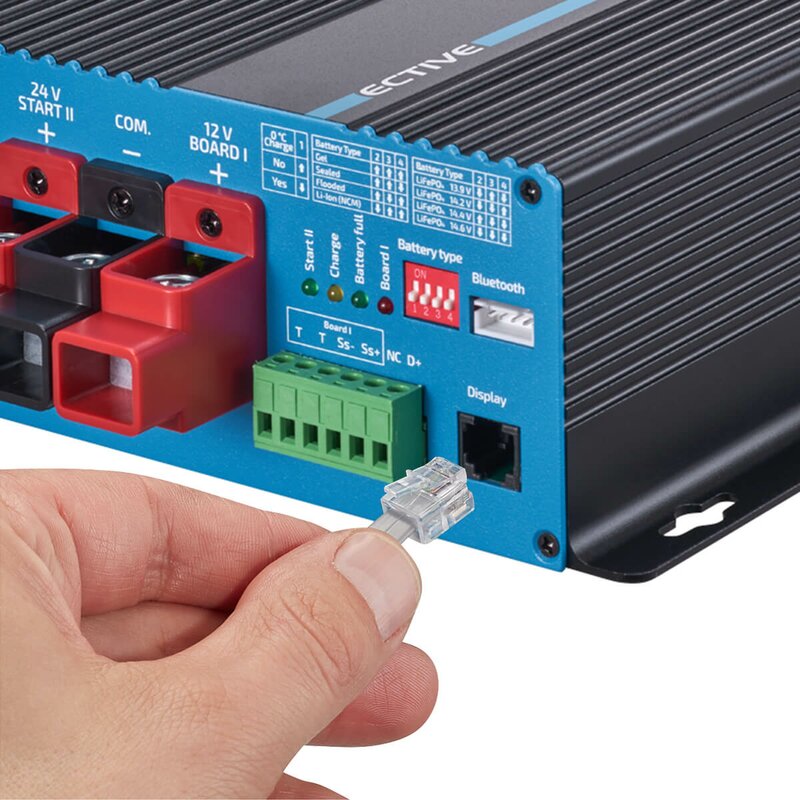

  • Useful additional connections for ECTIVE Charge Monitor, ECTIVE Bluetooth module, cable sensor and temperature sensor
  • Protection against over- or undervoltage of the main battery
  • Starter battery undervoltage protection
  • Overload protection for B2B charging
  • Reverse protection
  • Overheating protection

Charging process with charging booster:
Using a precise charging curve , the ECTIVE Battery Booster automatically increases and decreases the voltage to the required values ​​for optimal battery charging. Furthermore, the charging booster compensates for line losses and significant voltage fluctuations from the alternator , which are common in vehicles. 12-volt components in your vehicle are also protected from voltage fluctuations and overvoltage.

The charging process takes place in three optimized steps :

  • During boost charging, charging initially takes place with the maximum current until the battery voltage reaches the value of constant voltage charging.
  • Now the current begins to decrease and the constant voltage charging mode is started.
  • The charging time in this phase averages 2 hours, depending on the battery. If the battery voltage exceeds 12.6 volts, the constant voltage charging process ends and trickle charging begins.
  • Activation control input D+: 16-32V
  • Activation control input D+: 16-32V"
  • Battery nominal voltage (DC): 12V
  • Operating temperature: -20
  • Input overvoltage shutdown start II. max.: 33V
  • For battery type: Li-Ion (LiFePO4)
  • For battery type: SLA
  • For battery capacities: 90-560Ah
  • Weight: 1.6kg
  • Manufacturer's warranty: 2 years
  • Maximum battery charging current: 60A

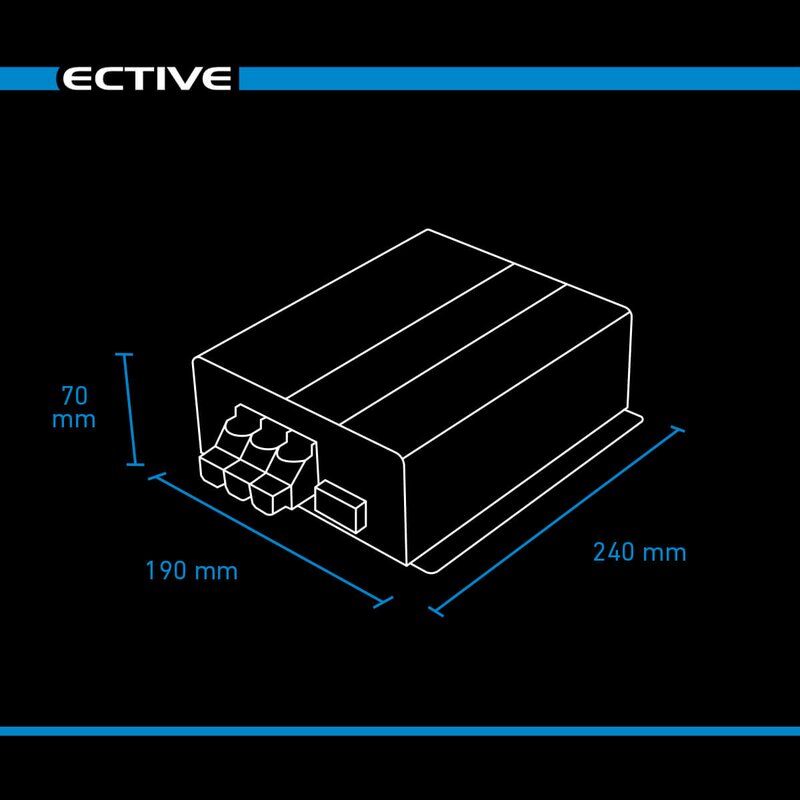

  • Dimensions (L x W x H): 240 x 190 x 70mm
  • Minimum starter battery nominal capacity: 100Ah
  • Protective functions:
  • Permissible relative humidity: max. 95% room humidity, non-condensing
