200W ETFE | Flexible solar module with 200Wp

SKU: 1001107
In stock
Available immediately and will arrive in 1-2 days.
Flexible and robust thanks to ETFE coating.
200Wp output.
CHF 229.90 VAT included.
Your payment with us is secure and protected by the latest PCI DSS standards. You can shop and pay with us worry-free using the following payment methods:
200W ETFE | Flexible solar module with 200Wp

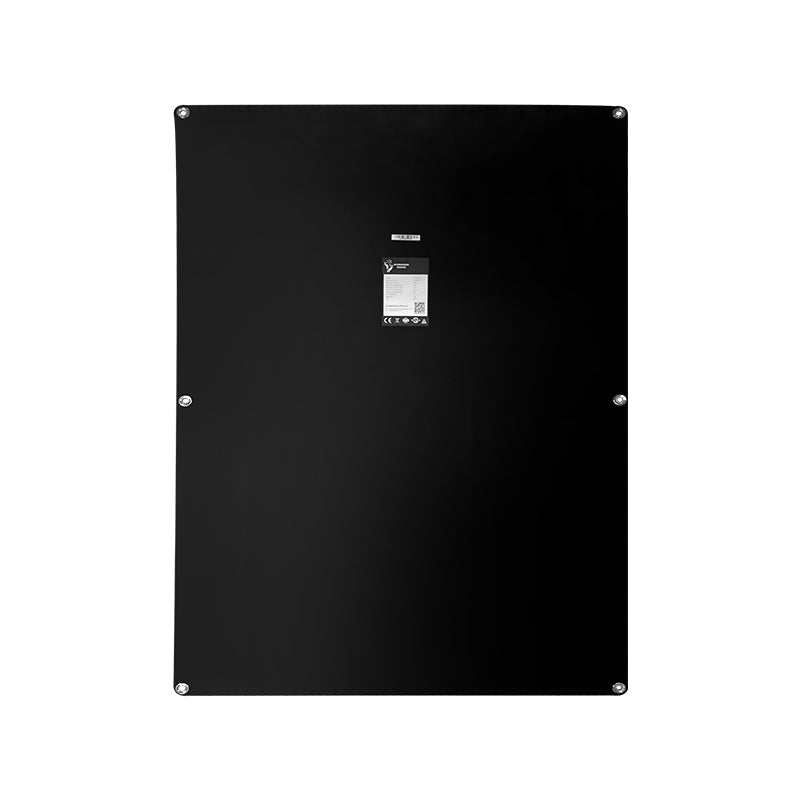

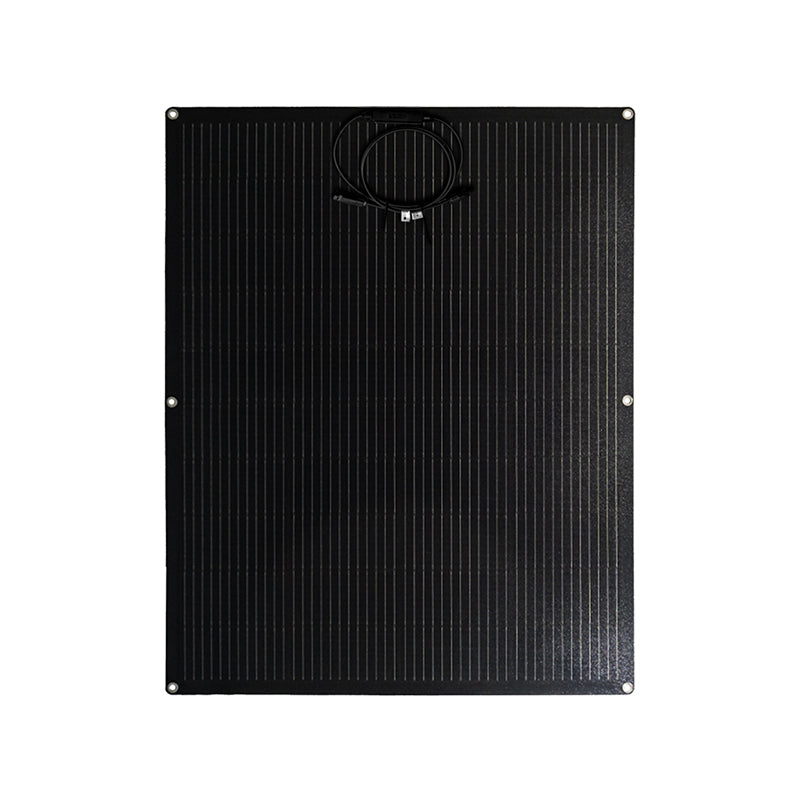

The 200W ETFE solar panel is designed for anyone who wants to combine maximum solar power with a flat and lightweight design. With a nominal power output of 200W, it is particularly suitable for larger solar systems on motorhomes, campers, and boats, as well as for mobile applications with higher daily energy demands.

Despite its high performance, the flexible module weighs only 3.62 kg and is just 2.5 mm thick, according to the data sheet. The monocrystalline solar cells achieve a specified module efficiency of 19.67%. The wide temperature range and specified resistance to wind and snow make the module attractive for demanding outdoor applications.

The increased solar power output provides greater flexibility in energy planning while traveling. Those who run refrigerators, lights, chargers, and other electrical appliances via a leisure battery can cover a larger portion of their energy needs directly with solar power during the day. This reduces dependence on external power sources, especially during extended stays away from campsites or harbors.

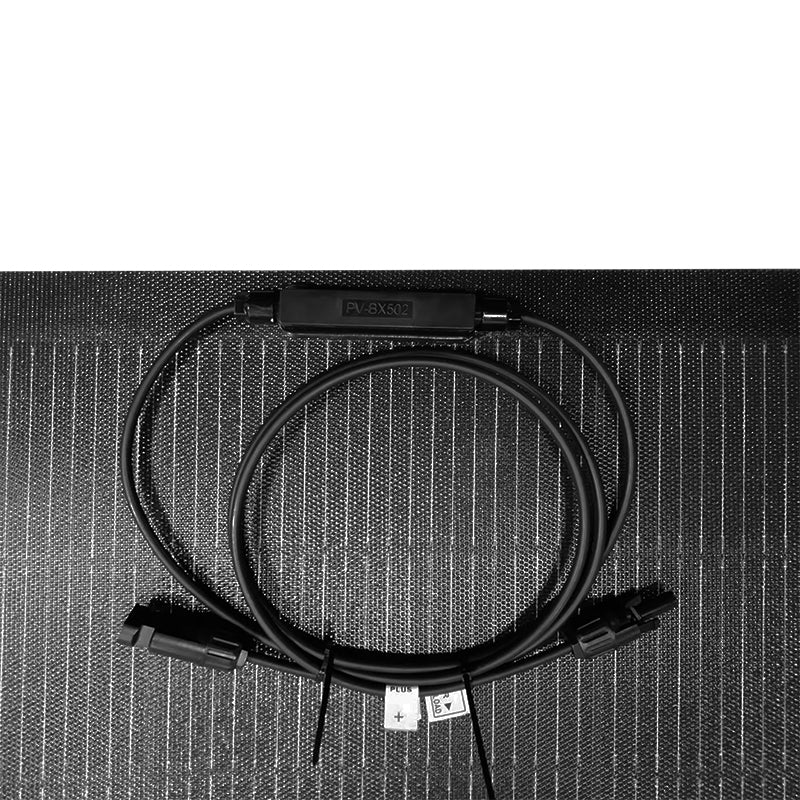

The module comes with MC4 connection cables, allowing it to be integrated into appropriately designed solar systems. An interesting solution for anyone who wants to consistently utilize available space for greater energy independence.
  • Number of cells: 40 (4 x 10)
  • Output cable: 4 mm², 90 cm, MC4
  • Operating and storage temperature: -40 to +85 °C
  • Weight: 3.62 kg
  • Short-circuit current (Isc): 9.12 A
  • Open circuit voltage (Voc): 27.20 V
  • Power tolerance: 0 to +3%
  • Dimensions (L x W x H): 1130 x 900 x 2.5 mm
  • Maximum series fuse rating: 10 A
  • Maximum system voltage: 500 V
  • Maximum wind load / snow load: 2400 Pa / 5400 Pa
  • Model: 200W ETFE
  • Module efficiency: 19.67%
  • Rated power: 200 W
  • NOCT: 45 ± 2 °C
  • Protection rating of junction box: IP65/IP67
  • Solar cells: Monocrystalline, 210 x 105 mm
  • Voltage at maximum power (Vmp): 23.20 V
  • Current at maximum power (Imp): 8.63 A
  • Temperature coefficient Isc: +0.048 %/°C
  • Temperature coefficient Pmax: -0.400%/°C
  • Temperature coefficient Voc: -0.330%/°C
